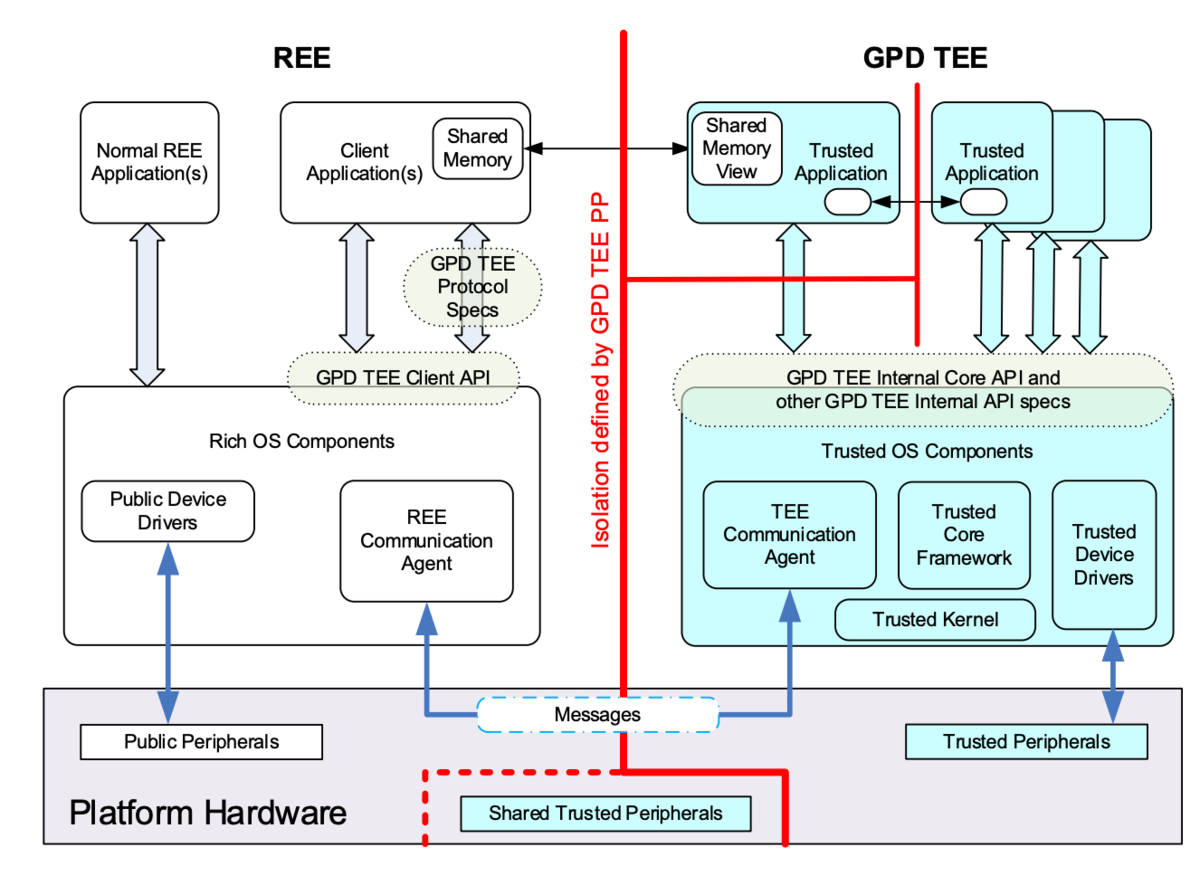

#define TA_HELLO_WORLD_UUID \
	{ 0x8aaaf200, 0x2450, 0x11e4, \
		{ 0xab, 0xe2, 0x00, 0x02, 0xa5, 0xd5, 0xc5, 0x1b} }

int main(void)
{
    TEEC_Result res;
    TEEC_Context ctx;
    TEEC_Session sess;
    TEEC_Operation op;
    TEEC_UUID uuid = TA_HELLO_WORLD_UUID;
    uint32_t err_origin;

    /* Initialize a context connecting us to the TEE */
    res = TEEC_InitializeContext(NULL, &ctx);
    if (res != TEEC_SUCCESS)
        errx(1, "TEEC_InitializeContext failed with code 0x%x", res);

    /*
     * Open a session to the "hello world" TA, the TA will print "hello
     * world!" in the log when the session is created.
     */
    res = TEEC_OpenSession(&ctx, &sess, &uuid,
                   TEEC_LOGIN_PUBLIC, NULL, NULL, &err_origin);
    if (res != TEEC_SUCCESS)
        errx(1, "TEEC_Opensession failed with code 0x%x origin 0x%x",
            res, err_origin);

    /*
     * Execute a function in the TA by invoking it, in this case
     * we're incrementing a number.
     *
     * The value of command ID part and how the parameters are
     * interpreted is part of the interface provided by the TA.
     */

    /* Clear the TEEC_Operation struct */
    memset(&op, 0, sizeof(op));

    /*
     * Prepare the argument. Pass a value in the first parameter,
     * the remaining three parameters are unused.
     */
    op.paramTypes = TEEC_PARAM_TYPES(TEEC_VALUE_INOUT, TEEC_NONE,
                     TEEC_NONE, TEEC_NONE);
    op.params[0].value.a = 42;

    /*
     * TA_HELLO_WORLD_CMD_INC_VALUE is the actual function in the TA to be
     * called.
     */
    printf("Invoking TA to increment %d\n", op.params[0].value.a);
    res = TEEC_InvokeCommand(&sess, TA_HELLO_WORLD_CMD_INC_VALUE, &op,
                 &err_origin);
    if (res != TEEC_SUCCESS)
        errx(1, "TEEC_InvokeCommand failed with code 0x%x origin 0x%x",
            res, err_origin);
    printf("TA incremented value to %d\n", op.params[0].value.a);

    /*
     * We're done with the TA, close the session and
     * destroy the context.
     *
     * The TA will print "Goodbye!" in the log when the
     * session is closed.
     */

    TEEC_CloseSession(&sess);

    TEEC_FinalizeContext(&ctx);

    return 0;

}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

TEEC_Result TEEC_InitializeContext(
    const char* name,
    TEEC_Context* context)

void TEEC_FinalizeContext(
    TEEC_Context* context)

TEEC_Result TEEC_OpenSession (
    TEEC_Context* context,
    TEEC_Session* session,
    const TEEC_UUID* destination,
    uint32_t connectionMethod,
    const void* connectionData,
    TEEC_Operation* operation,
    uint32_t* returnOrigin)

void TEEC_CloseSession (
    TEEC_Session* session)

TEEC_Result TEEC_InvokeCommand(
    TEEC_Session* session,
    uint32_t commandID,
    TEEC_Operation* operation,
    uint32_t* returnOrigin)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48

TEEC_Result TEEC_InitializeContext(const char *name, TEEC_Context *ctx)
{
	char devname[PATH_MAX] = { 0 };
	int fd = 0;
	size_t n = 0;

	if (!ctx)
		return TEEC_ERROR_BAD_PARAMETERS;

	for (n = 0; n < TEEC_MAX_DEV_SEQ; n++) {
		uint32_t gen_caps = 0;

		snprintf(devname, sizeof(devname), "/dev/tee%zu", n); //通常tee驱动只会创建一个设备，自定义条件下可能有多个设备。
		fd = teec_open_dev(devname, name, &gen_caps);//尝试去打开tee_driver的驱动
		if (fd >= 0) {
			ctx->fd = fd; //将设备的文件描述符存储在上下文中
			ctx->reg_mem = gen_caps & TEE_GEN_CAP_REG_MEM;  //reg_mem TEE状态 动态注册共享内存
			ctx->memref_null = gen_caps & TEE_GEN_CAP_MEMREF_NULL;
			return TEEC_SUCCESS;
		}
	}

	return TEEC_ERROR_ITEM_NOT_FOUND;

}

static int teec_open_dev(const char *devname, const char *capabilities,
			 uint32_t *gen_caps)
{
	int fd = 0;
	struct tee_ioctl_version_data vers;

	memset(&vers, 0, sizeof(vers));

	fd = open(devname, O_RDWR);
	if (fd < 0)
		return -1;

	if (ioctl(fd, TEE_IOC_VERSION, &vers)) {
		EMSG("TEE_IOC_VERSION failed");
		goto err;
	}

	/* We can only handle GP TEEs */
	if (!(vers.gen_caps & TEE_GEN_CAP_GP))
		goto err;
	...
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

struct tee_ioctl_open_session_arg {
	__u8 uuid[TEE_IOCTL_UUID_LEN];
	__u8 clnt_uuid[TEE_IOCTL_UUID_LEN];
	__u32 clnt_login;
	__u32 cancel_id;
	__u32 session;
	__u32 ret;
	__u32 ret_origin;
	__u32 num_params;
} __aligned(8);

struct tee_ioctl_param_memref {
	__u64 shm_offs;
	__u64 size;
	__s64 shm_id;
};

struct tee_ioctl_param_value {
	__u64 a;
	__u64 b;
	__u64 c;
};

struct tee_ioctl_param {
	__u64 attr;
	union {
		struct tee_ioctl_param_memref memref;
		struct tee_ioctl_param_value value;
	} u;
};

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71

/* optee_client/libteec/src/tee_client_api.c */
TEEC_Result TEEC_OpenSession(TEEC_Context *ctx, TEEC_Session *session,
			const TEEC_UUID *destination,
			uint32_t connection_method, const void *connection_data,
			TEEC_Operation *operation, uint32_t *ret_origin)
{
	struct tee_ioctl_open_session_arg *arg = NULL;
	struct tee_ioctl_param *params = NULL;
	TEEC_Result res = TEEC_ERROR_GENERIC;
	uint32_t eorig = 0;
	int rc = 0;
	const size_t arg_size = sizeof(struct tee_ioctl_open_session_arg) +
				TEEC_CONFIG_PAYLOAD_REF_COUNT *
					sizeof(struct tee_ioctl_param);
	union {
		struct tee_ioctl_open_session_arg arg;
		uint8_t data[arg_size];
	} buf;
	struct tee_ioctl_buf_data buf_data;
	TEEC_SharedMemory shm[TEEC_CONFIG_PAYLOAD_REF_COUNT]; //当teec输入的operation的param中含有数据流buffer时，需要申请将buffer拷贝到一块有tee驱动申请的安全与非安全交互的share_memory。

	memset(&buf, 0, sizeof(buf));
	memset(&shm, 0, sizeof(shm));
	memset(&buf_data, 0, sizeof(buf_data));

	(void)&connection_data;

	if (!ctx || !session) {
		eorig = TEEC_ORIGIN_API;
		res = TEEC_ERROR_BAD_PARAMETERS;
		goto out;
	}

	buf_data.buf_ptr = (uintptr_t)&buf;
	buf_data.buf_len = sizeof(buf);

	arg = &buf.arg;
	arg->num_params = TEEC_CONFIG_PAYLOAD_REF_COUNT;
	params = (struct tee_ioctl_param *)(arg + 1);

	uuid_to_octets(arg->uuid, destination);
	arg->clnt_login = connection_method;

	res = teec_pre_process_operation(ctx, operation, params, shm); //此处完成share_memory从内核到用户态的映射以及数据流的拷贝
	if (res != TEEC_SUCCESS) {
		eorig = TEEC_ORIGIN_API;
		goto out_free_temp_refs;
	}

	rc = ioctl(ctx->fd, TEE_IOC_OPEN_SESSION, &buf_data); //进入驱动ioctl函数,cmd决定了
	if (rc) {
		EMSG("TEE_IOC_OPEN_SESSION failed");
		eorig = TEEC_ORIGIN_COMMS;
		res = ioctl_errno_to_res(errno);
		goto out_free_temp_refs;
	}
	res = arg->ret;  //驱动回写的返回值
	eorig = arg->ret_origin;
	if (res == TEEC_SUCCESS) {
		session->ctx = ctx;
		session->session_id = arg->session;
	}
	teec_post_process_operation(operation, params, shm);

out_free_temp_refs:
	teec_free_temp_refs(operation, shm);
out:
	if (ret_origin)
		*ret_origin = eorig;
	return res;
}

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100

static TEEC_Result teec_pre_process_operation(TEEC_Context *ctx,
			TEEC_Operation *operation,
			struct tee_ioctl_param *params,
			TEEC_SharedMemory *shms)
{
	TEEC_Result res = TEEC_ERROR_GENERIC;
	size_t n = 0;

	memset(shms, 0, sizeof(TEEC_SharedMemory) *
			TEEC_CONFIG_PAYLOAD_REF_COUNT);
	...

	for (n = 0; n < TEEC_CONFIG_PAYLOAD_REF_COUNT; n++) {
		uint32_t param_type = 0;
		/* 遍历操作中的params */
		param_type = TEEC_PARAM_TYPE_GET(operation->paramTypes, n);
		switch (param_type) {
		...
        /* in_buffer中有两种类型，tmpref是还没写进share_memory的buffer */
		case TEEC_MEMREF_TEMP_INPUT:
		case TEEC_MEMREF_TEMP_OUTPUT:
		case TEEC_MEMREF_TEMP_INOUT:
			res = teec_pre_process_tmpref(ctx, param_type,
				&operation->params[n].tmpref, params + n,
				shms + n); //主要关心的是对temref处理，见下面实现
			if (res != TEEC_SUCCESS)
				return res;
			break;

        /* memref需要先申请一块share_memory，在CA中就直接写入共享内存 */
        /* 在CA申请共享内存有两种方式
           1. TEEC_AllocateSharedMemory
           若上下文中reg_mem为true则将申请一块新内存，注册进内核作为新增的共享内存。
           否则将从mmap一块内核中的共享内存，供CA使用。

           2. TEEC_RegisterSharedMemory
           与TEEC_AllocateSharedMemory基本一样，区别在于此时注册的进共享内存需要在外面申请好。
       	*/
		case TEEC_MEMREF_WHOLE:
			res = teec_pre_process_whole(
					&operation->params[n].memref,
					params + n);
			if (res != TEEC_SUCCESS)
				return res;
			break;
		case TEEC_MEMREF_PARTIAL_INPUT:
		case TEEC_MEMREF_PARTIAL_OUTPUT:
		case TEEC_MEMREF_PARTIAL_INOUT:
			res = teec_pre_process_partial(param_type,
				&operation->params[n].memref, params + n);
			if (res != TEEC_SUCCESS)
				return res;
			break;
		default:
			return TEEC_ERROR_BAD_PARAMETERS;
		}
	}

	return TEEC_SUCCESS;
}

static TEEC_Result teec_pre_process_tmpref(TEEC_Context *ctx,
			uint32_t param_type, TEEC_TempMemoryReference *tmpref,
			struct tee_ioctl_param *param,
			TEEC_SharedMemory *shm)
{
	TEEC_Result res = TEEC_ERROR_GENERIC;

    /* 设置一些param和share_memory的属性，通常是读写属性 */
	switch (param_type) {
    /*input tee预计做读操作， output tee预计做写操作， inout tee将读写整块区域*/
	case TEEC_MEMREF_TEMP_INPUT:
		param->attr = TEE_IOCTL_PARAM_ATTR_TYPE_MEMREF_INPUT;
		shm->flags = TEEC_MEM_INPUT;
		break;
	...
	}
    /* 入参buffer的长度，后面去申请shm将会以这个长度去申请 */
	shm->size = tmpref->size;

	if (!tmpref->buffer && ctx->memref_null) {
		if (tmpref->size)
			return TEEC_ERROR_BAD_PARAMETERS;

		/* Null pointer, indicate no shared memory attached */
		param->u.memref.shm_id = TEE_MEMREF_NULL;
		shm->id = -1;
	} else {
		res = TEEC_AllocateSharedMemory(ctx, shm); // 申请share_memory
		if (res != TEEC_SUCCESS)
			return res;

		//将入参buffer拷入申请share_memory
		memcpy(shm->buffer, tmpref->buffer, tmpref->size);
		param->u.memref.shm_id = shm->id;
	}

	param->u.memref.size = tmpref->size;
	return TEEC_SUCCESS;
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

/* driver/tee/tee_core.c */
struct tee_device *tee_device_alloc(const struct tee_desc *teedesc,
				    struct device *dev,
				    struct tee_shm_pool *pool,
				    void *driver_data)
{
	struct tee_device *teedev;  /* 驱动的全局变量，包含了驱动中各个驱动的结构 */
	void *ret;
	int rc, max_id;
	int offs = 0;

    teedev = kzalloc(sizeof(*teedev), GFP_KERNEL);
	...
	cdev_init(&teedev->cdev, &tee_fops); // tee的驱动为字符设备，tee_fops here!
	...
    dev_set_drvdata(&teedev->dev, driver_data);
	device_initialize(&teedev->dev);
    ...
    /* 挂载上的二级结构，看下面的分析 */
    teedev->desc = teedesc;
}
EXPORT_SYMBOL_GPL(tee_device_alloc);

static const struct file_operations tee_fops = {
	.owner = THIS_MODULE,
	.open = tee_open,            // open入口
	.release = tee_release,
	.unlocked_ioctl = tee_ioctl, // ioctl入口
	.compat_ioctl = compat_ptr_ioctl,
};

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103

/* driver/tee/tee_core.c */
static int tee_open(struct inode *inode, struct file *filp)
{
	struct tee_context *ctx;

    /* 初始化好打开设备的上下文, 通过inode中的i_cdev找到驱动全局变量teedev */
	ctx = teedev_open(container_of(inode->i_cdev, struct tee_device, cdev));
	if (IS_ERR(ctx))
		return PTR_ERR(ctx);

	/*
	 * Default user-space behaviour is to wait for tee-supplicant
	 * if not present for any requests in this context.
	 */
	ctx->supp_nowait = false;
	filp->private_data = ctx;
	return 0;
}

static struct tee_context *teedev_open(struct tee_device *teedev)
{
	int rc;
	struct tee_context *ctx;

	if (!tee_device_get(teedev))
		return ERR_PTR(-EINVAL);

	ctx = kzalloc(sizeof(*ctx), GFP_KERNEL); // 创建上下文
	if (!ctx) {
		rc = -ENOMEM;
		goto err;
	}

	kref_init(&ctx->refcount);
	ctx->teedev = teedev;
	INIT_LIST_HEAD(&ctx->list_shm);
    /*
    	真正的open操作，由optee驱动的desc->op提供.
    	如上文所说，tee_driver是一个外层框架，其驱动真正实现的挂载点正是此处
    */
	rc = teedev->desc->ops->open(ctx);
	if (rc)
		goto err;

	return ctx;
err:
	kfree(ctx);
	tee_device_put(teedev);
	return ERR_PTR(rc);

}

/* desc 挂载的位置： driver/tee/optee/core.c*/
static struct optee *optee_probe(struct device_node *np)
{
	...
    invoke_fn = get_invoke_func(np); // 此处将为触发smc的函数挂载
    ...
    optee->invoke_fn = invoke_fn;
    ...
    /* 调用了上面的tee_device_alloc，注册上了具体的tee驱动描述和op*/
	teedev = tee_device_alloc(&optee_desc, NULL, pool, optee);
	if (IS_ERR(teedev)) {
		rc = PTR_ERR(teedev);
		goto err;
	}
	optee->teedev = teedev;

	teedev = tee_device_alloc(&optee_supp_desc, NULL, pool, optee);
	if (IS_ERR(teedev)) {
		rc = PTR_ERR(teedev);
		goto err;
	}
	optee->supp_teedev = teedev;
	...
}

static optee_invoke_fn *get_invoke_func(struct device_node *np)
{
	...
	else if (!strcmp("smc", method))
		return optee_smccc_smc; //optee->invoke_fn = optee_smccc_smc；
	...
}

static const struct tee_driver_ops optee_ops = {
	.get_version = optee_get_version,
	.open = optee_open,   // open函数， 不具体分析了，主要还是用于初始化打开tee设备的上下文
	.release = optee_release,
    //ioctl下的操作，如open_session:
	.open_session = optee_open_session,
	.close_session = optee_close_session,
	.invoke_func = optee_invoke_func,
	.cancel_req = optee_cancel_req,
	.shm_register = optee_shm_register,
	.shm_unregister = optee_shm_unregister,
};

static const struct tee_desc optee_desc = {
	.name = DRIVER_NAME "-clnt",
	.ops = &optee_ops,
	.owner = THIS_MODULE,
};

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88

/* driver/tee/tee_core.c */
static long tee_ioctl(struct file *filp, unsigned int cmd, unsigned long arg)
{
	struct tee_context *ctx = filp->private_data;
	void __user *uarg = (void __user *)arg;

	switch (cmd) {
	...
    /* 主要看open_session */
	case TEE_IOC_OPEN_SESSION:
		return tee_ioctl_open_session(ctx, uarg);
	...
	}
}

static int tee_ioctl_open_session(struct tee_context *ctx,
				  struct tee_ioctl_buf_data __user *ubuf)
{
	int rc;
	size_t n;
	struct tee_ioctl_buf_data buf;
	struct tee_ioctl_open_session_arg __user *uarg;
	struct tee_ioctl_open_session_arg arg;
	struct tee_ioctl_param __user *uparams = NULL;
	struct tee_param *params = NULL;
	bool have_session = false;

	if (!ctx->teedev->desc->ops->open_session)
		return -EINVAL;

	if (copy_from_user(&buf, ubuf, sizeof(buf)))
		return -EFAULT;

	if (buf.buf_len > TEE_MAX_ARG_SIZE ||
	    buf.buf_len < sizeof(struct tee_ioctl_open_session_arg))
		return -EINVAL;

    /* 这一段操作都是将用户态的args拷贝到内核态，恢复对应的结构体；和普通驱动操作差不多 */
	uarg = u64_to_user_ptr(buf.buf_ptr);
	if (copy_from_user(&arg, uarg, sizeof(arg)))
		return -EFAULT;

	if (sizeof(arg) + TEE_IOCTL_PARAM_SIZE(arg.num_params) != buf.buf_len)
		return -EINVAL;

	if (arg.num_params) {
		params = kcalloc(arg.num_params, sizeof(struct tee_param),
				 GFP_KERNEL);
		if (!params)
			return -ENOMEM;
		uparams = uarg->params;
		rc = params_from_user(ctx, params, arg.num_params, uparams);
		if (rc)
			goto out;
	}
	// 从上一段源码可看到挂载的具体处理函数为optee_open_session,
	rc = ctx->teedev->desc->ops->open_session(ctx, &arg, params);
	if (rc)
		goto out;
	have_session = true;

    /* 将结果拷贝回用户态空间 */
	if (put_user(arg.session, &uarg->session) ||
	    put_user(arg.ret, &uarg->ret) ||
	    put_user(arg.ret_origin, &uarg->ret_origin)) {
		rc = -EFAULT;
		goto out;
	}
	rc = params_to_user(uparams, arg.num_params, params);
out:
	/*
	 * If we've succeeded to open the session but failed to communicate
	 * it back to user space, close the session again to avoid leakage.
	 */
	if (rc && have_session && ctx->teedev->desc->ops->close_session)
		ctx->teedev->desc->ops->close_session(ctx, arg.session);

	if (params) {
		/* Decrease ref count for all valid shared memory pointers */
		for (n = 0; n < arg.num_params; n++)
			if (tee_param_is_memref(params + n) &&
			    params[n].u.memref.shm)
				tee_shm_put(params[n].u.memref.shm);
		kfree(params);
	}

	return rc;
}

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114

struct optee_msg_arg {
	uint32_t cmd;
	uint32_t func;
	uint32_t session;
	uint32_t cancel_id;
	uint32_t pad;
	uint32_t ret;
	uint32_t ret_origin;
	uint32_t num_params;

	/* num_params tells the actual number of element in params */

	struct optee_msg_param params[];

};

/* driver/tee/optee/call.c */
int optee_open_session(struct tee_context *ctx,
		       struct tee_ioctl_open_session_arg *arg,
		       struct tee_param *param)
{
	struct optee_context_data *ctxdata = ctx->data;
	int rc;
	struct tee_shm *shm;
	struct optee_msg_arg *msg_arg;
	phys_addr_t msg_parg;
	struct optee_session *sess = NULL;

	/* +2 for the meta parameters added below */
	/* 这个函数用来申请传递smc的具体msg的共享内存空间，安全与非安全通过该结构体完成通信
	   msg_parg是具体的物理地址，通过该物理地址传递具体cmd参数
	   （安全态和非安全态维护着不同的页表） */
	shm = get_msg_arg(ctx, arg->num_params + 2, &msg_arg, &msg_parg);
	if (IS_ERR(shm))
		return PTR_ERR(shm);

	/* 指定上具体的smc msg中的cmd，此处将去完成open_session操作 */
	msg_arg->cmd = OPTEE_MSG_CMD_OPEN_SESSION;
	msg_arg->cancel_id = arg->cancel_id;

	/*
	 * Initialize and add the meta parameters needed when opening a
	 * session.
	 * 主要包含上uuid和client_uuid：
	 * uuid是一个TA服务的唯一标识符
	 */
	msg_arg->params[0].attr = OPTEE_MSG_ATTR_TYPE_VALUE_INPUT |
				  OPTEE_MSG_ATTR_META;
	msg_arg->params[1].attr = OPTEE_MSG_ATTR_TYPE_VALUE_INPUT |
				  OPTEE_MSG_ATTR_META;
	memcpy(&msg_arg->params[0].u.value, arg->uuid, sizeof(arg->uuid));
	memcpy(&msg_arg->params[1].u.value, arg->uuid, sizeof(arg->clnt_uuid));
	msg_arg->params[1].u.value.c = arg->clnt_login;

	/* 我们主要关心的函数：将用户态传下来的数据拷入上面申请的smc通讯共享内存中params的字段 */
	rc = optee_to_msg_param(msg_arg->params + 2, arg->num_params, param);
	if (rc)
		goto out;

	sess = kzalloc(sizeof(*sess), GFP_KERNEL);
	if (!sess) {
		rc = -ENOMEM;
		goto out;
	}

	/* 此处将触发smc指令，cpu进入el3的atf中*/
	if (optee_do_call_with_arg(ctx, msg_parg)) {
		msg_arg->ret = TEEC_ERROR_COMMUNICATION;
		msg_arg->ret_origin = TEEC_ORIGIN_COMMS;
	}

	if (msg_arg->ret == TEEC_SUCCESS) {
		/* A new session has been created, add it to the list. */
		sess->session_id = msg_arg->session;
		mutex_lock(&ctxdata->mutex);
		list_add(&sess->list_node, &ctxdata->sess_list);
		mutex_unlock(&ctxdata->mutex);
	} else {
		kfree(sess);
	}
	/* 将拷贝数据从msg共享内存拷贝回非安全入参的共享内存中 */
	...

}

int optee_to_msg_param(struct optee_msg_param *msg_params, size_t num_params,
		       const struct tee_param *params)
{
	int rc;
	size_t n;

	for (n = 0; n < num_params; n++) {
		/*value类型的传参，赋值即可，memref的buffer入参如下处理：*/
	    ...
		case TEE_IOCTL_PARAM_ATTR_TYPE_MEMREF_INPUT:
		case TEE_IOCTL_PARAM_ATTR_TYPE_MEMREF_OUTPUT:
		case TEE_IOCTL_PARAM_ATTR_TYPE_MEMREF_INOUT:
			/* 将shm注册进msg_param结构体中
			 * tmp需要写入具体物理地址，ref直接写入shm结构体即可
			 */
	    	if (tee_shm_is_registered(p->u.memref.shm))
				rc = to_msg_param_reg_mem(mp, p);
			else
				rc = to_msg_param_tmp_mem(mp, p);
			if (rc)
				return rc;
			break;
		default:
			return -EINVAL;
		}
	}
	return 0;

}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68

/* driver/tee/optee/call.c */
u32 optee_do_call_with_arg(struct tee_context *ctx, phys_addr_t parg)
{
	struct optee *optee = tee_get_drvdata(ctx->teedev);
	struct optee_call_waiter w;
	struct optee_rpc_param param = { };
	struct optee_call_ctx call_ctx = { };
	u32 ret;

    /* 准备好寄存器的值 */
    /* r0: smc_call的命令 */
	param.a0 = OPTEE_SMC_CALL_WITH_ARG;

    /* r1, r2: 上面准备好的msg结构体的物理地址, r1低32位，r2高32位，通过寄存器传递给安全侧 */
	reg_pair_from_64(&param.a1, &param.a2, parg);
	/* Initialize waiter */
	optee_cq_wait_init(&optee->call_queue, &w);
	while (true) {
		struct arm_smccc_res res;

		optee_bm_timestamp();

        /*如上文optee_probe所示， 此处将挂载上optee_smccc_smc */
		optee->invoke_fn(param.a0, param.a1, param.a2, param.a3,
				 param.a4, param.a5, param.a6, param.a7,
				 &res);

		optee_bm_timestamp();

		if (res.a0 == OPTEE_SMC_RETURN_ETHREAD_LIMIT) {
			/*
			 * Out of threads in secure world, wait for a thread
			 * become available.
			 */
			optee_cq_wait_for_completion(&optee->call_queue, &w);
		} else if (OPTEE_SMC_RETURN_IS_RPC(res.a0)) {
			might_sleep();
			param.a0 = res.a0;
			param.a1 = res.a1;
			param.a2 = res.a2;
			param.a3 = res.a3;
			optee_handle_rpc(ctx, &param, &call_ctx);
		} else {
			ret = res.a0;
			break;
		}
	}

	optee_rpc_finalize_call(&call_ctx);
	/*
	 * We're done with our thread in secure world, if there's any
	 * thread waiters wake up one.
	 */
	optee_cq_wait_final(&optee->call_queue, &w);

	return ret;
}

/* driver/tee/optee/core
/* Simple wrapper functions to be able to use a function pointer */
static void optee_smccc_smc(unsigned long a0, unsigned long a1,
			    unsigned long a2, unsigned long a3,
			    unsigned long a4, unsigned long a5,
			    unsigned long a6, unsigned long a7,
			    struct arm_smccc_res *res)
{
	arm_smccc_smc(a0, a1, a2, a3, a4, a5, a6, a7, res);
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35

/* include/linux/arm-smccc.h */
#define arm_smccc_smc(...) __arm_smccc_smc(__VA_ARGS__, NULL)
...
asmlinkage void __arm_smccc_smc(unsigned long a0, unsigned long a1,
			unsigned long a2, unsigned long a3, unsigned long a4,
			unsigned long a5, unsigned long a6, unsigned long a7,
			struct arm_smccc_res *res, struct arm_smccc_quirk *quirk);

/* arch/arm64/kernel/smccc-call.S */
.macro SMCCC instr
	.cfi_startproc
	\instr	#0  /* smc 0, 此处触发smc指令进入el3 atf */
	ldr	x4, [sp]
	stp	x0, x1, [x4, #ARM_SMCCC_RES_X0_OFFS] /* smc指令回来之后，保存结果寄存器状态 */
	stp	x2, x3, [x4, #ARM_SMCCC_RES_X2_OFFS]
	ldr	x4, [sp, #8]
	cbz	x4, 1f /* no quirk structure */
	ldr	x9, [x4, #ARM_SMCCC_QUIRK_ID_OFFS]
	cmp	x9, #ARM_SMCCC_QUIRK_QCOM_A6
	b.ne	1f
	str	x6, [x4, ARM_SMCCC_QUIRK_STATE_OFFS]
1:	ret
	.cfi_endproc
	.endm

/*
 * void arm_smccc_smc(unsigned long a0, unsigned long a1, unsigned long a2,
 *		  unsigned long a3, unsigned long a4, unsigned long a5,
 *		  unsigned long a6, unsigned long a7, struct arm_smccc_res *res,
 *		  struct arm_smccc_quirk *quirk)
 */
ENTRY(__arm_smccc_smc)
	SMCCC	smc
ENDPROC(__arm_smccc_smc)
EXPORT_SYMBOL(__arm_smccc_smc)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

/* optee-src/core/arch/arm/kernel/thread.c */
uint32_t thread_handle_std_smc(uint32_t a0, uint32_t a1, uint32_t a2,
   		       uint32_t a3, uint32_t a4, uint32_t a5,
   		       uint32_t a6 __unused, uint32_t a7 __maybe_unused)
{
   uint32_t rv = OPTEE_SMC_RETURN_OK;

   /* 检查tee堆栈的canary，是否有溢出情况 */
   thread_check_canaries();
   ...

   /*
    * thread_resume_from_rpc() and thread_alloc_and_run() only return
    * on error. Successful return is done via thread_exit() or
    * thread_rpc().
    */

   /* smc_call来自rpc(非安全侧响应tee的命令的守护进程)分支 */
   if (a0 == OPTEE_SMC_CALL_RETURN_FROM_RPC) {
   	thread_resume_from_rpc(a3, a1, a2, a4, a5);
   	rv = OPTEE_SMC_RETURN_ERESUME;
   } else { /* smc_call来自Libteec，主要包括open session, close session, invoke等 */
       /*a0-a3对应寄存器r0-r3*/
   	thread_alloc_and_run(a0, a1, a2, a3);
   	rv = OPTEE_SMC_RETURN_ETHREAD_LIMIT;
   }
   ...

}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75

/* optee-src/core/arch/arm/thread.c */
void thread_alloc_and_run(uint32_t a0, uint32_t a1, uint32_t a2, uint32_t a3)
{
	size_t n;
	struct thread_core_local *l = thread_get_core_local();
	bool found_thread = false;

    /* 确定当前核上没有线程占据，
     * 特别注意，OPTEE每一个核只能有一个线程运行
     */
	assert(l->curr_thread == -1);

	thread_lock_global();
    /* 从全局变量的thread中，拿出一个分配给当前的请求 */
	for (n = 0; n < CFG_NUM_THREADS; n++) {
		if (threads[n].state == THREAD_STATE_FREE) {
			threads[n].state = THREAD_STATE_ACTIVE;
			found_thread = true;
			break;
		}
	}

	thread_unlock_global();

	if (!found_thread)
		return;

	l->curr_thread = n;

	threads[n].flags = 0;
    /* 初始化thread的各种寄存器上下文 */
	init_regs(threads + n, a0, a1, a2, a3);

	thread_lazy_save_ns_vfp();
    /* 线程启动 */
	thread_resume(&threads[n].regs);
	/*NOTREACHED*/
	panic();

}

static void init_regs(struct thread_ctx *thread, uint32_t a0, uint32_t a1,
		      uint32_t a2, uint32_t a3)
{

	/* 指定该线程上下文中PC指针的地址，当该thread resume回来之后就会开始执行regs.pc执
	 * 行的函数
	 */
	thread->regs.pc = (uint64_t)thread_std_smc_entry;

	/*
	 * Stdcalls starts in SVC mode with masked foreign interrupts, masked
	 * Asynchronous abort and unmasked native interrupts.
	 */
	thread->regs.cpsr = SPSR_64(SPSR_64_MODE_EL1, SPSR_64_MODE_SP_EL0,
				THREAD_EXCP_FOREIGN_INTR | DAIFBIT_ABT);
	/* Reinitialize stack pointer */
	thread->regs.sp = thread->stack_va_end;

	/*
	 * Copy arguments into context. This will make the
	 * arguments appear in x0-x7 when thread is started.
	 */
	thread->regs.x[0] = a0;
	thread->regs.x[1] = a1;
	thread->regs.x[2] = a2;
	thread->regs.x[3] = a3;
	thread->regs.x[4] = 0;
	thread->regs.x[5] = 0;
	thread->regs.x[6] = 0;
	thread->regs.x[7] = 0;

	/* Set up frame pointer as per the Aarch64 AAPCS */
	thread->regs.x[29] = 0;
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64

static uint32_t std_smc_entry(uint32_t a0, uint32_t a1, uint32_t a2,
			      uint32_t a3 __unused)
{
	paddr_t parg = 0;
	struct optee_msg_arg *arg = NULL;
	uint32_t num_params = 0;
	struct mobj *mobj = NULL;
	uint32_t rv = 0;

    /* 此处可以看到来自CA的请求,r0只能是OPTEE_SMC_CALL_WITH_ARG */
	if (a0 != OPTEE_SMC_CALL_WITH_ARG) {
		EMSG("Unknown SMC 0x%"PRIx32, a0);
		DMSG("Expected 0x%x", OPTEE_SMC_CALL_WITH_ARG);
		return OPTEE_SMC_RETURN_EBADCMD;
	}
    /* 通过r1-r2恢复msg的物理地址 */
	parg = reg_pair_to_64(a1, a2);

	/* Check if this region is in static shared space */
	if (core_pbuf_is(CORE_MEM_NSEC_SHM, parg,
			 sizeof(struct optee_msg_arg))) {
        /* 此处将物理地址转成安全世界中的虚拟地址 */
		mobj = get_cmd_buffer(parg, &num_params);
	} else {
		if (parg & SMALL_PAGE_MASK)
			return OPTEE_SMC_RETURN_EBADADDR;
		mobj = map_cmd_buffer(parg, &num_params);
	}

	if (!mobj || !ALIGNMENT_IS_OK(parg, struct optee_msg_arg)) {
		EMSG("Bad arg address 0x%" PRIxPA, parg);
		mobj_put(mobj);
		return OPTEE_SMC_RETURN_EBADADDR;
	}

    /* mobj_shm_alloc函数完成了mobj的申请，拿到va即可，获得msg的虚拟地址 */
	arg = mobj_get_va(mobj, 0);
	assert(arg && mobj_is_nonsec(mobj));
    /* 获取msg，开始处理请求 */
	rv = tee_entry_std(arg, num_params);
	mobj_put(mobj);

	return rv;

}

static struct mobj *get_cmd_buffer(paddr_t parg, uint32_t *num_params)
{
	struct optee_msg_arg *arg;
	size_t args_size;

    /* arg的地址在此 */
	arg = phys_to_virt(parg, MEM_AREA_NSEC_SHM);
	if (!arg)
		return NULL;
	/* 读取params的数量 */
	*num_params = READ_ONCE(arg->num_params);
	if (*num_params > OPTEE_MSG_MAX_NUM_PARAMS)
		return NULL;

	args_size = OPTEE_MSG_GET_ARG_SIZE(*num_params);
	/* optee中的对于虚拟内存分解成mobj(memory object)结构体，将保存虚拟地址，物理地址等 */
	return mobj_shm_alloc(parg, args_size, 0);
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52

/* optee-src/core/arch/arm/entry_std.c */
uint32_t __tee_entry_std(struct optee_msg_arg *arg, uint32_t num_params)
{
	uint32_t rv = OPTEE_SMC_RETURN_OK;

	/* Enable foreign interrupts for STD calls */
	thread_set_foreign_intr(true);
	switch (arg->cmd) {
    /* 回忆起来, tee_driver填的cmd为OPTEE_MSG_CMD_OPEN_SESSION */
	case OPTEE_MSG_CMD_OPEN_SESSION:
		entry_open_session(arg, num_params);
		break;
	...

	return rv;
}

static void entry_open_session(struct optee_msg_arg *arg, uint32_t num_params)
{
	TEE_Result res;
	TEE_ErrorOrigin err_orig = TEE_ORIGIN_TEE;
	struct tee_ta_session *s = NULL;
	TEE_Identity clnt_id;
	TEE_UUID uuid;
	struct tee_ta_param param;
	size_t num_meta;
	uint64_t saved_attr[TEE_NUM_PARAMS] = { 0 };

    /* 获取一些基本的参数，在驱动侧我们能看到前两个params是驱动填充的，是一些meta数据：
     * 1. uuid，用来确定加载的TA的名字
     * 2. 参数个数
     * 3. clnt_id (这个具体其实没有具体使用，可能后续将用于客户端鉴权)
     */
	res = get_open_session_meta(num_params, arg->params, &num_meta, &uuid,
				    &clnt_id);
	if (res != TEE_SUCCESS)
		goto out;

    /* 此处是非常关键的安全操作：将共享内存中的param拷贝到安全内存中 */
	res = copy_in_params(arg->params + num_meta, num_params - num_meta,
			     &param, saved_attr);
	if (res != TEE_SUCCESS)
		goto cleanup_shm_refs;

    /* 之后所有的操作都在此函数中完成，以下流程都在该函数中进行 */
	res = tee_ta_open_session(&err_orig, &s, &tee_open_sessions, &uuid,
				  &clnt_id, TEE_TIMEOUT_INFINITE, &param);
	if (res != TEE_SUCCESS)
		s = NULL;
	...
}


 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57

/* core/kernel/tee_ta_manager.c */
TEE_Result tee_ta_open_session(TEE_ErrorOrigin *err,
			       struct tee_ta_session **sess,
			       struct tee_ta_session_head *open_sessions,
			       const TEE_UUID *uuid,
			       const TEE_Identity *clnt_id,
			       uint32_t cancel_req_to,
			       struct tee_ta_param *param)
{
	TEE_Result res;
	struct tee_ta_session *s = NULL;
	struct tee_ta_ctx *ctx;
	bool panicked;
	bool was_busy = false;

	res = tee_ta_init_session(err, open_sessions, uuid, &s);
	if (res != TEE_SUCCESS) {
		DMSG("init session failed 0x%x", res);
		return res;
	}
	...
}

static TEE_Result tee_ta_init_session(TEE_ErrorOrigin *err,
				struct tee_ta_session_head *open_sessions,
				const TEE_UUID *uuid,
				struct tee_ta_session **sess)
{
	TEE_Result res;
	struct tee_ta_ctx *ctx;
    /* session结构体的初始化，ta_ctx上下文也将注册进此结构体 */
	struct tee_ta_session *s = calloc(1, sizeof(struct tee_ta_session));

    ...

	/* Look for already loaded TA */
	ctx = tee_ta_context_find(uuid);
	if (ctx) {
		res = tee_ta_init_session_with_context(ctx, s);
		if (res == TEE_SUCCESS || res != TEE_ERROR_ITEM_NOT_FOUND)
			goto out;
	}

	/* Look for pseudo TA */
    /* 静态 pseudo TA是指已经一起连编进optee内核的一些TA。
     * 这种TA打开比较简单，搜索内核中PTA的段，匹配对应的uuid，若匹配上，则直接进入open_session处理
     * 由于是与optee内核连编，无需验签
     */
	res = tee_ta_init_pseudo_ta_session(uuid, s);
	if (res == TEE_SUCCESS || res != TEE_ERROR_ITEM_NOT_FOUND)
		goto out;

	/* Look for user TA */
    /* 关键函数，假如我们要加载从文件系统/安全存储上的TA，走这个分支，我们这里主要观察 */
	res = tee_ta_init_user_ta_session(uuid, s);
	...
}
